CO2Boss - High Concentration Carbon Dioxide Sensor

Avatar

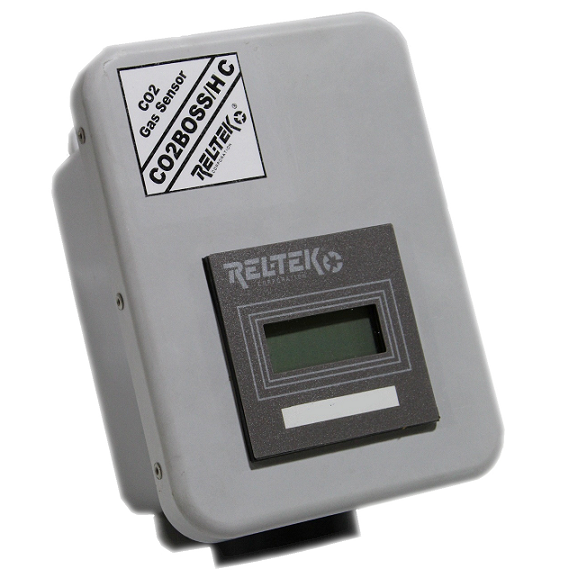

CO2Boss™ High Concentration Carbon Dioxide Sensor - Toxic Gas Sensor

Carbon Dioxide SensorHigh Concentration Carbon Dioxide Sensor
Contact Sales
(Hover over the image to enlarge)

The CO2Boss/HC is higher concentration version of the CO2Boss/I. Not only does it have a higher range it is also classified for use in mines when connected to a matching letter class barrier. Barriers are available from Rel-Tek.

The 4-20mA analog output signal is standard. The electronics is modularized and potted to make it impervious to moisture and dust and is housed in a fiberglass enclosure. This three wire sensor consist of a + power a 4-20mA signal and a common. An LED current indicator provides a visible indication of power and signal. The operating voltage can range from 8 to 28 VDC and draws 56mA. The optional digital meter: 4 digits cover the standard range 0-5%, as well as other custom ranges.

CO2Boss and GasBoss are Rel-Tek trademarks.
