MultiBoss®/DP
Differential Pressure Transducer -- Whether you are monitoring inches of water
or psi, the MultiBoss/DP does the job. Select a sensing head from one of six
available ranges to suit your needs. Absolute, gage or differential pressure--
just specify the type. Powered from 12-30VDC, 4-20ma linear signal, 3-wire hookup,
35ma max current drain. Optional digital meter continuously displays the reading
in 1/2" high, easy to read characters.

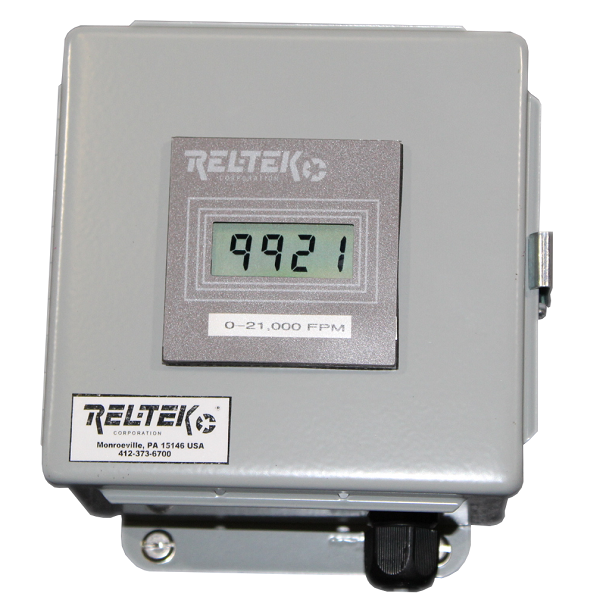

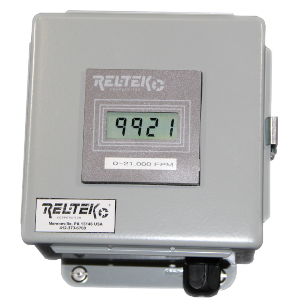

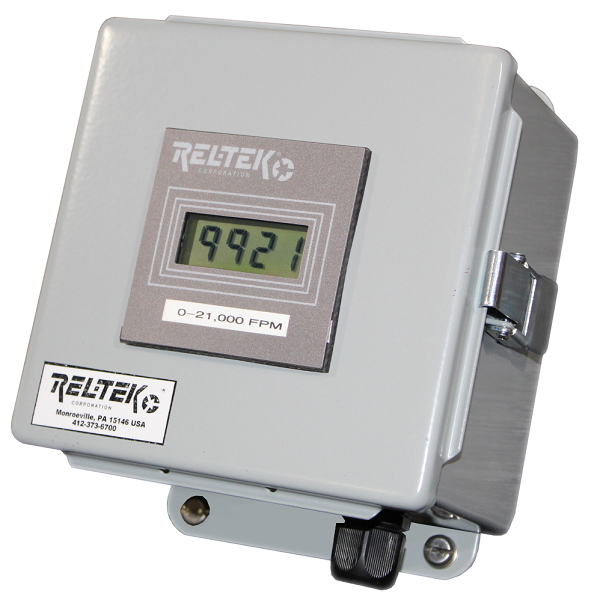

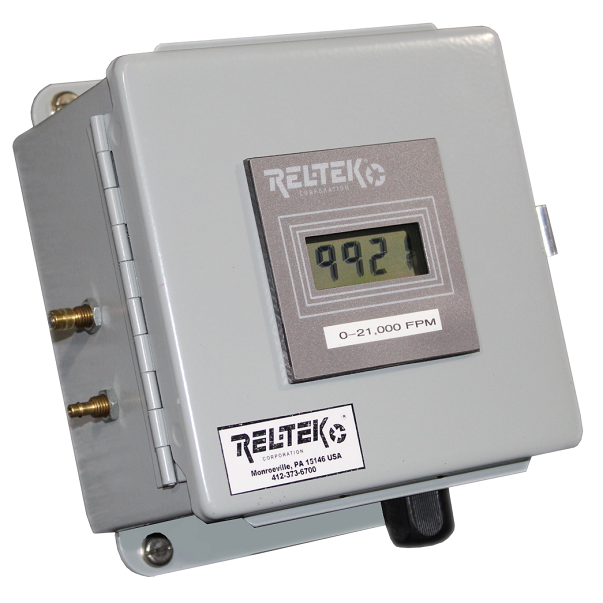

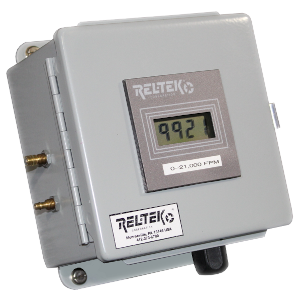

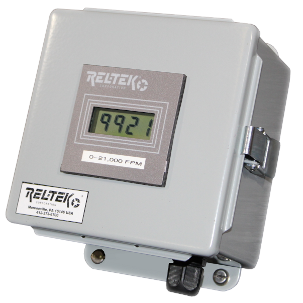

Housed in a 6x6x4" steel, wall mount enclosure, it has external hose barbs
for easy tubing hookup. MSHA classified G, H and L for use in hazardous methane
areas of underground coal mines. Compatible intrinsic safety barriers are available,
along with all necessary protective regulators and accessories. The MultiBoss/DP
is a high quality, US-manufactured product, combining top performance, safety
and economy for your benefit.
Parameters Differential pressure transducer
Handles a variety of pressure and airflow monitoring applications, this product
may be ordered for any range PA through PF, see Table 1.
- Offset: Zero pressure can be set at mid scale to read +/- pressures.
- Output: 4-20mA, linear
- Field switchable: four ranges: approx. 9%, 18%, 50%, 100%.
Table 1 - Pressure Options Within Selected Max Range
Max press
specify) |
|
Low/Low
switch |
|
Low
switch |
|
Mid
switch |
|
Max FS
switch |
|
| -PA - - - - |
5 |
in-WGd |
10 |
in-WGd |
1 |
psid |
2 |
psid |
| -PB - - - - |
12.5 |
" |
25 |
" |
2.5 |
" |
5 |
" |
| -PC - - - - |
37.5 |
" |
75 |
" |
7.5 |
" |
15 |
" |
| -PD - - - - |
75 |
" |
50 |
" |
15 |
" |
30 |
" |
| -PE - - - - |
125 |
" |
250 |
" |
25 |
" |
50 |
" |
| -PF - - - - |
250 |
" |
500 |
" |
50 |
" |
100 |
" |
(in WGd = inches of water gage, differential)
- Optional digital meter: can be set to read inches WGd, psi, atmospheres,
inches of mercury or other units to suit application.
- Simple hookup: (2 or 3-wire); Digital meter (if used) requires a third wire.
(returning to negative supply).
- Excitation: 9-30 VDC at terminals.
- Temperature range: 0-50C, 32-122F (operating); accuracy: 2% FS.
- Over pressure capacity; 20 psi or 3 times the maximum range, not exceeding
200 psi
- Pressurizing medium: air, water, oil, non-corrosive gases/liquids.
- Enclosure: 6x6x4"; steel; painted gray; hinge/latch; weighs 5 lbs.
| Item |
Catalog No. |
| Transducer, complete -- |
MB-100/DP-(Table 1) |
| Non-standard ranges to 100 psi can be specified. |
|
| Digital display (3-1/2 digits) |
add suffix -D |
| Dual set-point outputs (2-SPDT contacts) |
add suffix -RM |
| Absolute pressure option (vacuum reference) |
|
| For barometric pressure application |
add suffix -ABS |
| Gage pressure option (ambient reference) |
add suffix -G |
This product is covered by US/MSHA classifications G, H and L, and Canadian/NRCan
(EMR) Certification No. 1053 for use in hazardous methane areas. Call for more
information or to order.
MultiBoss is a Rel-Tek registed trademark.
|
