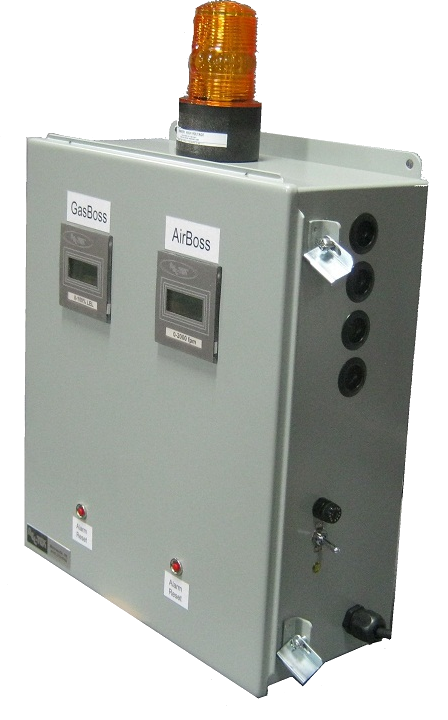

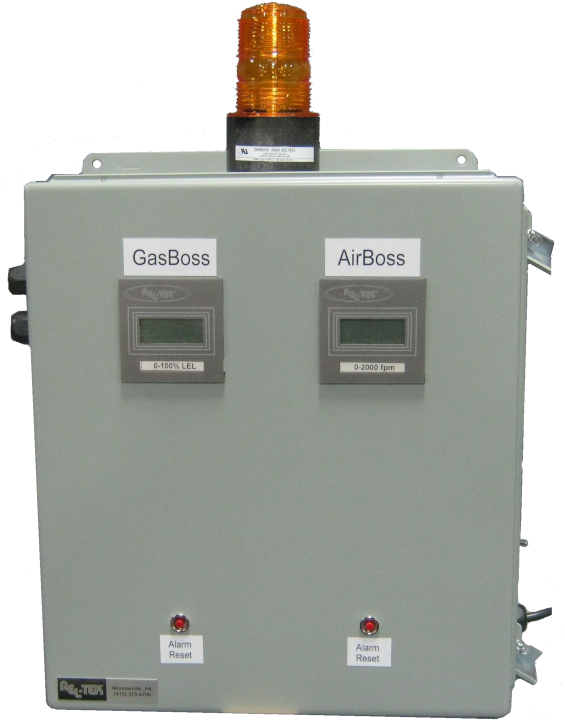

TelEcon-401
(Hover over the image to enlarge)
The TelEcon-401 is our low cost stand-alone controller. This unit is ideal for
monitoring 1-4 sensors of any type that has a 4-20mA output. The programmable
RM420i controls alarms depending upon how many modules are installed
in the enclosure. The TelEcon-401 can be powered by 110VAC/
or 24VDC. There is also an optional back-up battery re-chargeable system.
The size of the panel is depended on the number of modules used. Since
many customers' needs are different, the TelEcon-401 is modularly adaptable to custom
requirement.
The following specification sheet is based on a single input unit, with internal power supply and alarms:
Specification Sheet:
|
Dimension
|
Enclosure 11.5" x 9" x 4.25"
Overall w/strobe 15.5" x 10.5 x 4.25"
|
|
Weights
|
10 lbs
|
|
AC Input Power
|
110-120VAC (20 watts)
|
|
DC Power
|
24VDC (1 Amp)
|
|
Audible Alarm
|
108 dB @ 2ft
|
|
Visual Alarm
|
50 candela
|
|
Cable entries
|
provided by installer.
|
|
Wire Gauge
|
14AWG + GND.
|
|
Mounting Hardware
|
use mounting screws
|
Environment
Temperature
Humidity
|
for fresh air only
-40F to +125F (except battery)
0-95% RH, non-condensing
|
|
RM420i
|
Relay Module 4-20mA - (qty 1 to 8)
|
|
Display
|
4 digit, LCD
|
|
Input
|
4-20mA
|
|
Output
|
Two pilot relays, Field adjustable thresholds; SPDT 120VAL/.5A contacts
|
|
